Automatic CZ Purlin Roll Forming Machine
C Z Purlin Roll Forming Machine Description
A c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.
The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine
C Z Purlin Roll Forming Machine Technical parameters
| No. | Item | Description |
| 1 | Suitable Material | GI, GL, PPGI, PPGL Coil, Q235 Coil |
| 2 | Suitable Thickness | 1.5~3.0mm |
| 3 | Roller Station | 16 stations |
| 4 | Forming Speed | 8~12m/min (including the punching and cutting) |
| 5 | Roller Material | GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC |
| 6 | Main Motor Power | 15 Kw |
| 7 | Shaft Material | Cr40 steel, Tempering and Quenching |
| 8 | Shaft Diameter | 70mm |
| 9 | Cutting | Hydraulic Cutting |
| 10 | Blade Material | C12MoV, Quenched |
| 11 | Hydraulic Station Power | 7.5 Kw |
| 12 | Drive Type | Single row Chain Drive |
| 13 | Machine Size | 10500mmx900mmx1500mm (L*W*H) |
| 14 | Machine Weight | Approx 8 tons |
| 15 | Machine Frame | 48mm Thick Plate |
| 16 | PLC Control System | Panasonic |
| 17 | Frequency converter | Yaskawa |
| 18 | Encoder | Omron |
| 19 | Servo motor | Yaskawa |
| 20 | Other Electrical Components | Schneider |

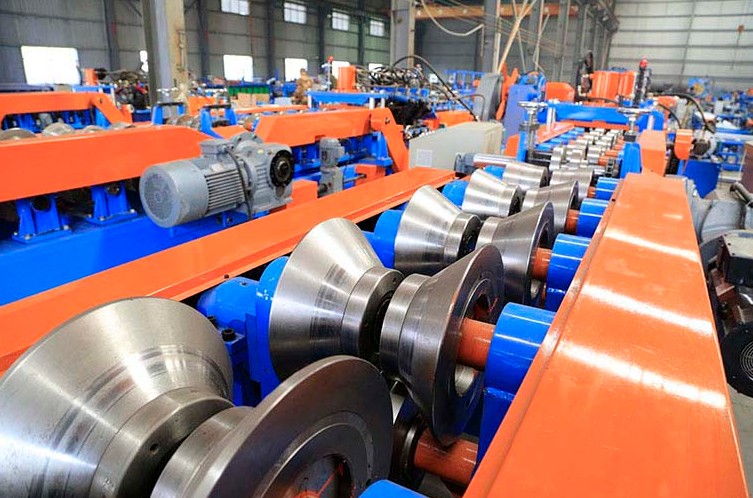

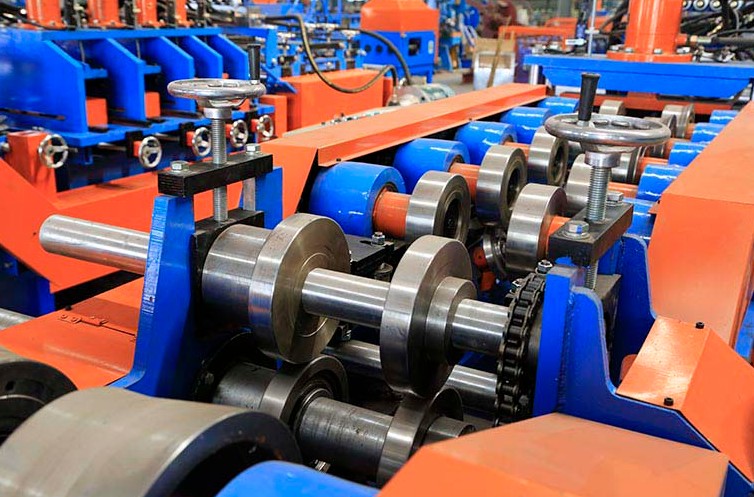

C Z Purlin Roll Forming Machine Pictures
After Sale Service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
